Binary Integer Programming - Exploring 0 Branch Previous Next

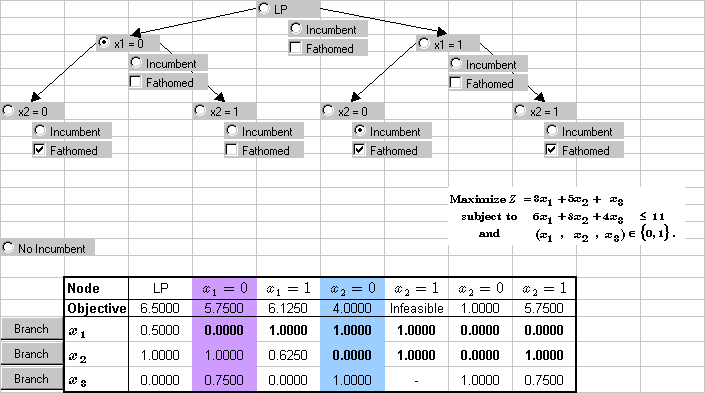

With the above objectives for the two subproblems, the subproblem with  can be immeduately fathomed by Test 1 (1 < incumbent objective = 4). This is achieved by checking the "Fathomed" box below the node "x2 = 0" emanating from the "x1 = 0" node. The subproblem with  cannot be fathomed, so we next will branch from this node (by clicking on this node) with the next variable  as the branching variable to start Iteration 4.
